Mitsubishi Heating & Air Conditioning Systems and Products




NAXWST Wall-Mounted Heat Pumps
Available capacities in kBtu/h: 09, 12, 15, 18, 24, 30, 36
14.5 – 24.6 SEER, 8.2 – 12.8 HSPF, INVERTER-driven compressor
Auto restart and auto cooling/heating changeover
Vertical air swing on all units
Compatible with kumo cloud® control app and Thermostat Interface
All GL models ENERGY STAR® certified

NAXWPH Multi Zone High-Efficiency Heat Pumps
Available capacities in kBtu/h: 06, 09, 12, 15, 18
Double-vane air delivery for enhanced circulation
Optional Thermostat Interface (PAC-US444CN-1) to allow for operation with third-party thermostats
Whisper-quiet operation
Also available for single-zone application

NAXWST Heat Pumps
Available capacities in kBtu/h: 06, 09, 12, 15, 18, 24
Whisper-quiet operation
Also available for single-zone application

PEAD Horizontal-Ducted Mutli Zone Heat Pumps
Available capacities in kBtu/h: 9, 12, 15, 18
INVERTER-driven compressor
Built-in condensate lift mechanism (up to 27-9/16″)
Static capability up to 0.60 in. wg
Option filter box with MERV-13 filters
Interlock with Lossnay
2-stages of supplemental heat control

NAXDKS Horizontal-Ducted Multi Zone Heat Pumps
Available capacities in kBtu/h: 9, 12, 15, 18
Built-in condensate lift mechanism (up to 21-11/16″)
Also available for single-zone application

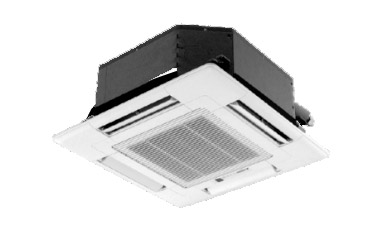

NAXCKS Ceiling Cassette Heat Pumps
Available capacities in kBtu/h: 09, 12, 15
15–16 SEER, 9.6 HSPF, INVERTER-driven compressor
Provides cooling and heating in a wide range of capacities
Ventilation air knockouts
Built-in condensate lift mechanism (up to 20″)
Multiple airflow adjustments

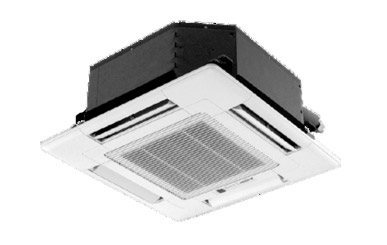

NAXCKS Ceiling Cassette Multi Zone Heat Pumps
Available capacities in kBtu/h: 9, 12, 15
Ventilation air knockouts
Built-in condensate lift mechanism (up to 20″)
Whisper-quiet operation
Also available for single-zone application

NAXAMT Ducted Air Handler
Available capacities in kBtu: 12, 18
Up to 17 SEER
Upflow, horizontal left, horizontal right configurations
Optional electric heat kits
Condensation overflow switch connection
Humidifier and ERV interface connections
Auxiliary heat control connections

NAXFKS Floor-Mounted Heat Pumps
Available capacities in kBtu/h: 09, 12, 15, 18
21.0–28.2 SEER
Rapid heating
Operates with 25% less power than competing models
Recessing is an option

NAXUKS One-Way Ceiling Cassette Multi Zone Heat Pumps
Available capacities in kBtu/h: 09, 12, 18
Built-in condensate lift mechanism (21″)
Flexible air flow direction: left/right and up/down
4 fan speeds plus auto fan mode

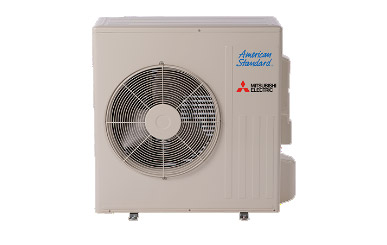

NAXMMX Outdoor Units
Mix and match flexibility of indoor unit styles and combinations
A wide range of indoor unit capacities that match the room size and requirements
Flexible options to tackle the most challenging multi-room installations
High-efficiency, multiple ENERGY STAR® combinations
Four- and five-ton outdoor unit can support up to eight indoor units using branch boxes
New five-ton outdoor unit for large residential home applications
Auto restart following a power outage
Self-check function offering integrated diagnostics

NAXSKS Outdoor Heat Pumps
Available capacities in kBtu/h: 09, 12, 15
15–16 SEER, 9.6 HSPF, INVERTER-driven compressor
Provides cooling and heating in a wide range of capacities
Ventilation air knockouts
Built-in condensate lift mechanism (up to 20″)
Multiple airflow adjustments
